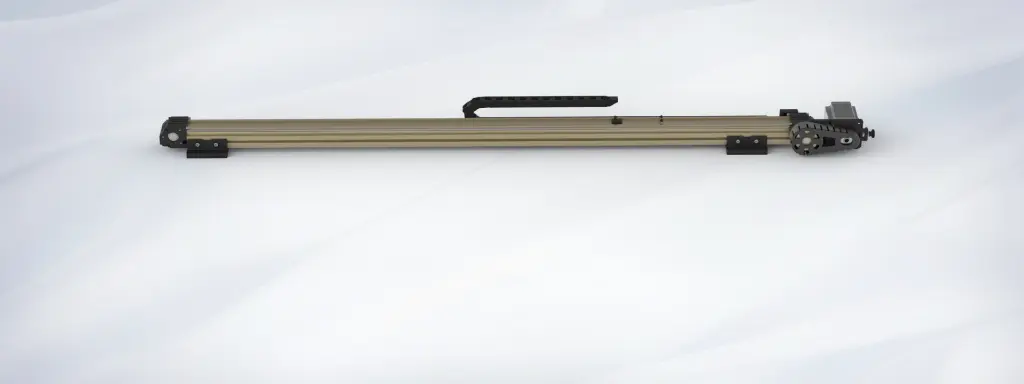

Expand Learning with Upscaling Dobot Sliding Rail Kit

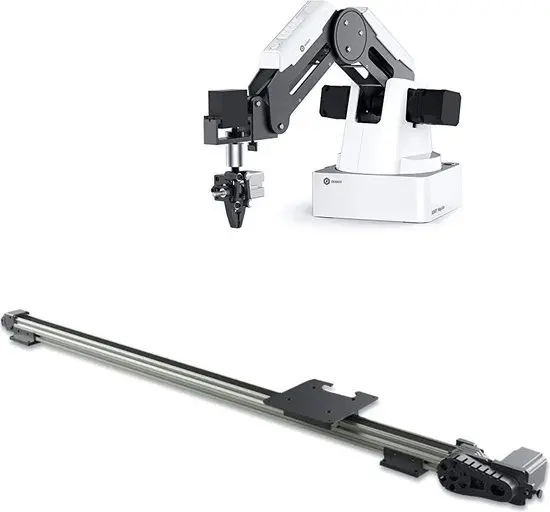

An operating range of one additional meter opens up extra opportunities for extensive scaling. With the sliding rail kit, the working space of DOBOT Magician can be fully extended to enable it to perform large-scale tasks, such as long-distance picking and placing, a more extensive range of writing, drawing, or laser engraving.
Compatible with Dobot MG400 and M1 Pro
Specifications
| Payload | 5 kg |
| Effective Travel Distance | 1000 mm |
| Maximum Speed | 150 mm/s |
| Maximum Acceleration | 150 mm/s² |
| Repeat positioning accuracy | 0.01 mm |
| Absolute positioning accuracy | 0.25 mm |
| Net Weight | 4.7 KG |
| Weight (including packing) | 7.23 KG |
| Dimension(Lenth × Width × Height) | 1320 mm × 120 mm × 55 mm |

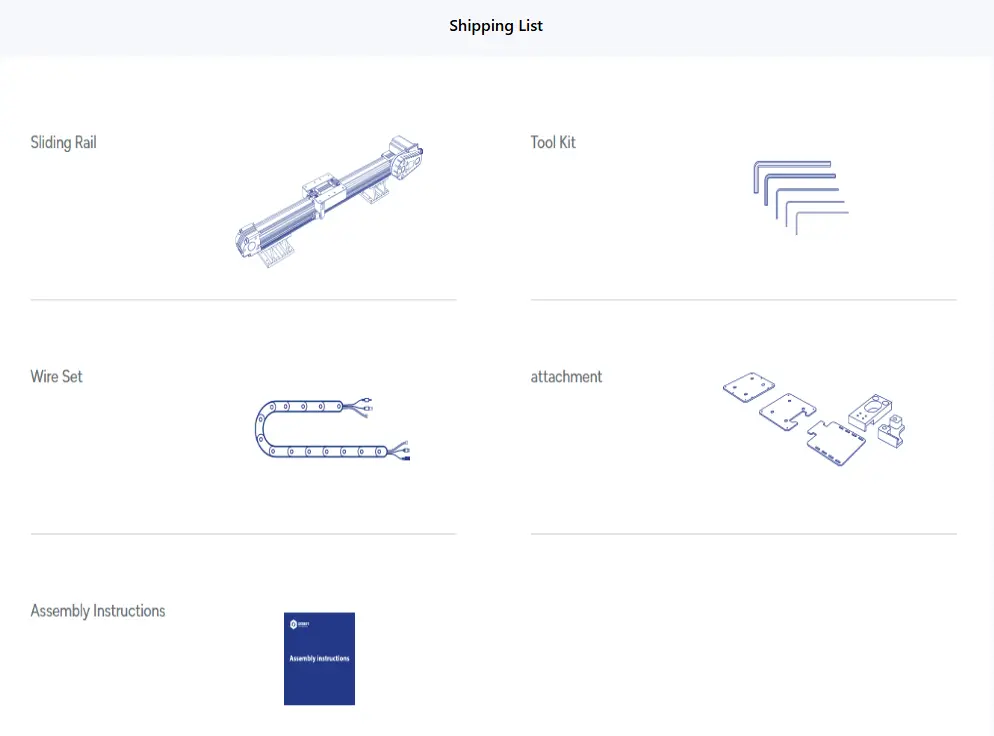

Shipping List
- Sliding Rail
- Tool Kit
- Wire Set
- attachment
- Assembly Instructions Manual
